From Mario to Procgen: preprocessing, the emulator tax, and generalization

After the curiosity posts, I moved the reinforcement-learning work off Super Mario Bros and onto Procgen. This tutorial is the why, from first principles — because the environment you pick decides both what you can measure and how fast you can measure it, often more than the algorithm does. Two goals drove the switch:

1. Stop being CPU-bound — a genuine waste in deep RL, and
2. Be able to test generalization at all.

If you remember one sentence: Mario is one hand-built level behind an emulator; Procgen is a factory of levels running natively in one process — and that difference is preprocessing you don’t write, environments you can actually parallelize, and a generalization test you couldn’t run before.

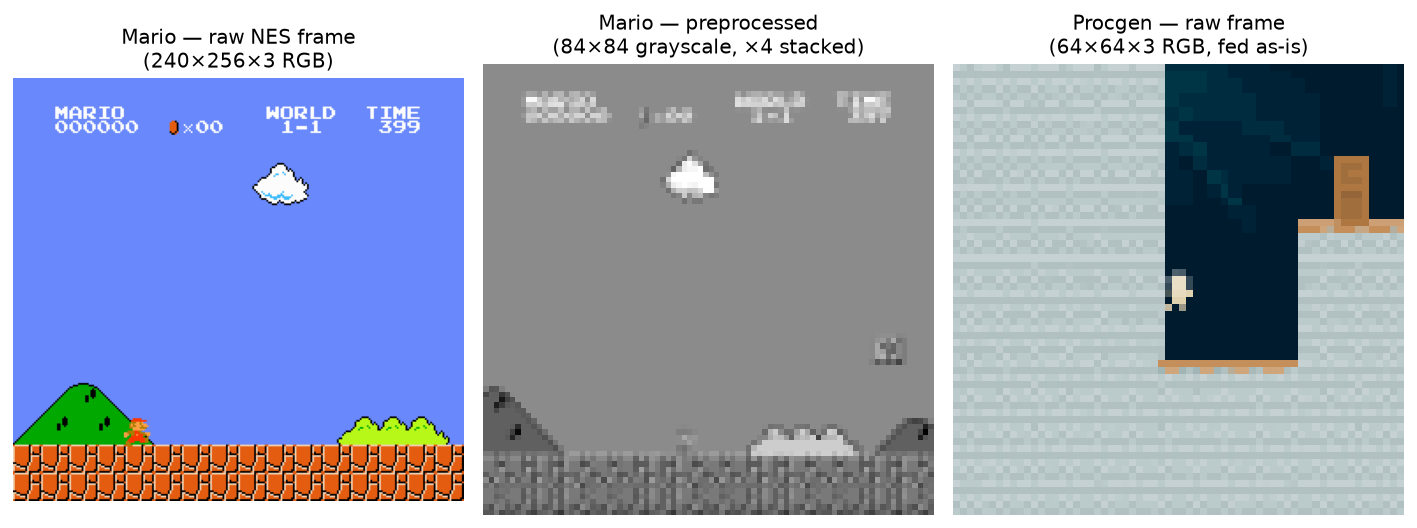

What each agent actually sees. Mario’s rich 240×256 frame gets reduced to an 84×84 grayscale stack before the network touches it; Procgen’s 64×64 frame is fed in as-is.

Every new term is defined the first time it appears.

---

Part 0 — What an “environment” gives you

An RL environment is the world the agent acts in. Each step it takes an action and returns an observation (here: an image of the screen), a reward, and whether the episode ended. The agent never sees the game’s internal state — only pixels. So the shape and cost of those pixels, and how many copies of the world you can run at once, are first-order design facts. That’s what changes between Mario and Procgen.

---

Part 1 — Preprocessing: the frames you must fix vs. the frames you don’t

Mario hands you a raw NES frame: (240, 256, 3) RGB, at the console’s frame rate. You can’t feed that to a CNN as-is — three problems, three fixes, the standard Atari/DQN pipeline:

• Too big → resize to 84×84 (less compute per frame).
• Color is mostly decoration → grayscale (drop 3 channels to 1).
• A single frame isn’t Markov. From one still image you can’t tell if Mario is rising or falling — velocity is invisible. → stack the last 4 frames so the network can infer motion. And skip frames: repeat each chosen action for 4 game frames (cheaper, and one decision then maps to one meaningful change).

Markov: a state is Markov if it contains everything needed to predict the future — no memory of the past required. One Mario frame isn’t (no velocity); four stacked frames approximately are.

So before the agent learns anything, you write and tune four wrappers (resize, grayscale, stack, skip) that turn (240,256,3) into (4, 84, 84).

Procgen hands you (64, 64, 3) RGB — and you feed it straight to the CNN. No resize (already small), no grayscale (color is semantic here: keys, walls, and enemies are color-coded — graying it out destroys information), no stacking and no frame-skip (the games are designed to be ~fully observable from a single frame). The preprocessing you skip isn’t laziness — it’s the standard, so your results stay comparable to the published Procgen numbers.

	Mario	Procgen
Raw observation	(240, 256, 3) RGB	(64, 64, 3) RGB
Resize	needed → 84×84	none (already small)
Grayscale	yes (color irrelevant)	no (color is semantic)
Frame stacking	4 (to see velocity)	none (near-Markov single frame)
Frame-skip	4	none
What the net sees	(4, 84, 84)	(3, 64, 64)

---

Part 2 — The emulator tax: why I could run 8 Mario envs but 64 Procgen envs

RL is data-hungry, so you run many copies of the environment in parallel (a vectorized environment) to feed the network a big batch each step. How you parallelize depends entirely on what the environment is.

Mario runs on an NES emulator. Under the hood, gym-super-mario-bros drives nes-py, a program that simulates the console — a CPU-bound chunk of work, one instance per environment. To run many in parallel, “parallel” has to mean N separate operating-system processes (a subprocess vectorized env): each environment is its own process, and on every step you pickle the observation (a whole image) and push it through an OS pipe back to the learner.

IPC (inter-process communication): moving data between separate processes. Pickling an image and sending it over a pipe every step is pure overhead — it does no learning, it just moves bytes.

That overhead is brutal: on my M1, roughly two-thirds of the CPU was spent in the kernel shuffling observations between processes, not stepping games or training. It also caps how many envs you can afford. I ran 8.

Procgen is a native C++ environment that batches internally. ProcgenGym3Env(num=64) steps 64 levels inside one process, writing all 64 observations straight into a single array — no per-env process, no pickling, no pipes. One call in, a batch out. I jumped straight to 64 environments feeding one batched GPU forward pass, and throughput roughly tripled.

Why care? Deep RL alternates two phases: step the environment (CPU) and run the network (GPU). If env-stepping is slow, your expensive GPU sits idle waiting for data — you’re CPU-bound, paying for a GPU that twiddles its thumbs. The whole point of modern RL infra is to keep the GPU fed; an emulator-one-process-per-env starves it, a native batched env feeds it. Changing the environment did more for my throughput than any code optimization could.

---

Part 3 — Train and test: the question Mario can’t answer

Here’s the scientific reason, and it’s the big one.

Mario 1-1 is a single, fixed, hand-authored level. You train on it and evaluate on it — the same level. So when the agent finally clears it, you genuinely cannot tell whether it learned to play or memorized this exact layout. There is no held-out level to check against. (Mario has a “random-stages” mode, but it’s a small hand-made pool, not a real protocol.)

Procgen procedurally generates its levels from a seed. So you can train on a fixed set — say 200 levels — and then test on levels the agent has never seen (the rest of an effectively infinite distribution).

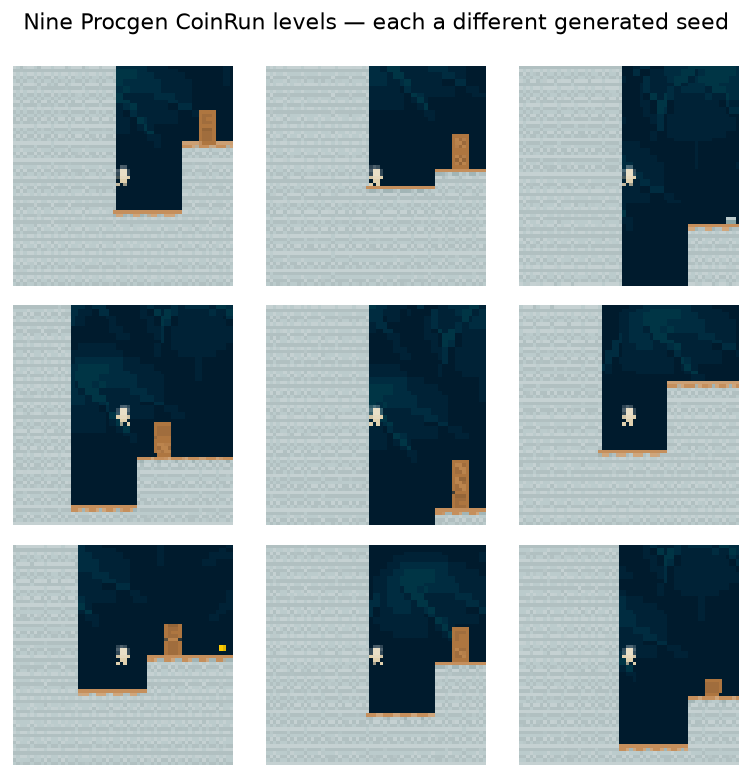

Nine CoinRun levels from nine different seeds — same rules, different layouts. Train on some, test on the rest, and the score difference tells you how much the agent actually learned versus memorized.

generalization gap: train score − test score. How much of the performance is transferable skill versus memorization of the specific training levels.

That gap is a single, honest number, and Mario simply can’t produce it. Measuring generalization is the entire reason Procgen exists (Cobbe et al., 2020). It’s what turns “my agent got good at the game” into “my agent learned something that transfers” — which is the question the rest of this project is actually about.

---

So: two goals, one environment change

• Not CPU-bound — native in-process batching took me from 8 → 64 environments and kept the GPU fed instead of idling behind an emulator.
• Test generalization — a train/test split over procedurally-generated levels gives a real generalization gap, which a single fixed level never could.

There was one catch: none of this mattered until Procgen actually built on my Apple-Silicon laptop — which, out of the box, it didn’t. Getting past that was its own small adventure in refusing to route around a broken build. That’s the next post: the last mile of fixing Procgen on Apple Silicon.
